What it is
A compact desktop workstation built around AMD’s Ryzen AI Max+ 395: sixteen Zen 5 cores, Radeon 8060S integrated graphics and an NPU, with 128 GB of LPDDR5X memory soldered to the board and shared by all three. There is no separate graphics card and no separate VRAM.
That single pool is the reason this class of machine exists. A discrete card is capped by its own 16 or 24 GB, so a large model has to be quantised hard, split across machines or rented elsewhere. Here the model sits in the same memory the processor addresses, and nothing has to be copied across a PCIe bus.
What it can do
- Run local inference on models that do not fit comfortably in a consumer graphics card.
- Serve a chat or coding assistant on your own network, with your own documents indexed for retrieval.
- Fine-tune smaller models and adapters without booking time on someone else’s GPU.
- Generate images in batches, and run several agents at once with separate context each.
- Keep working with the internet down: the weights are on the machine, not behind an API.
- Stay quiet and small enough for a desk rather than a rack.
What comes with it
- The machine itself, assembled in the configuration described on this page.
- The manufacturer’s power supply and quick-start documentation.
- An invoice from PureDNA, sent by e-mail.
What does not
- Monitor, keyboard, mouse or speakers. It is a desktop machine and needs a screen and mains power.
- An operating system licence. No OS is installed or licensed by PureDNA; the processor vendor validates the platform for Windows 11 64 bit and for current Linux distributions, and you install what you use.
- Extra memory. It is soldered to the board and cannot be expanded or replaced later.
- Storage beyond the capacity confirmed for your unit. The drive size is fixed when an order is placed.
- CUDA. There is no NVIDIA hardware here, so software that only runs on CUDA has to go through ROCm, Vulkan or the processor instead.
Before you order
Nothing on this page is a promise about delivery time, warranty or returns — those terms are written on How it works. This model is shown as out of stock and cannot be put in the cart.
Specifications
| Model | Peladn YO1 |
|---|---|
| Processor | AMD Ryzen AI Max+ 395, 16 cores / 32 threads; 55 W / 85 W / 120 W performance modes selected with the front-panel button |
| Graphics | AMD Radeon 8060S, RDNA 3.5, 40 compute units, 2900 MHz, 32 MB cache |
| Memory | 128 GB LPDDR5X-8000, unified and soldered to the board — it cannot be expanded or replaced |
| Storage | 2 TB PCIe 4.0 x4 M.2 2280 SSD, plus one free M.2 2280 PCIe 4.0 x4 slot |
| Wired network | 1 × 2.5 Gigabit Ethernet (RJ45) |
| Wireless | Wi-Fi 6E (Intel AX210), Bluetooth 5.2 |
| Video outputs | 1 × HDMI 2.1 (8K 60 Hz), 1 × DisplayPort 1.4 (8K 60 Hz), 2 × USB4 in DisplayPort 1.4 mode (8K 60 Hz) |
| USB and audio | 2 × USB4 40 Gbps (Type-C, one front and one rear), 3 × USB 3.2 Gen2 (Type-A), 2 × USB 2.0 (Type-A), 2 × 3.5 mm headphone/microphone combo jack (one front, one rear), SD 4.0 card reader (UHS-II) |
| Power supply | External 20 V / 12 A adapter (240 W) |
| Dimensions | 221 mm wide × 200 mm deep × 56 mm high |
| Weight | 1380 g net, 3000 g in the packaging |
| Operating system | Windows 11 Pro pre-installed by the manufacturer |
| In the box | Workstation, 240 W power adapter, HDMI cable, user manual |
221 mm wide and 56 mm high — a little wider than an A4 sheet of paper (210 mm) and about the height of two stacked paperbacks.
Ports, numbered

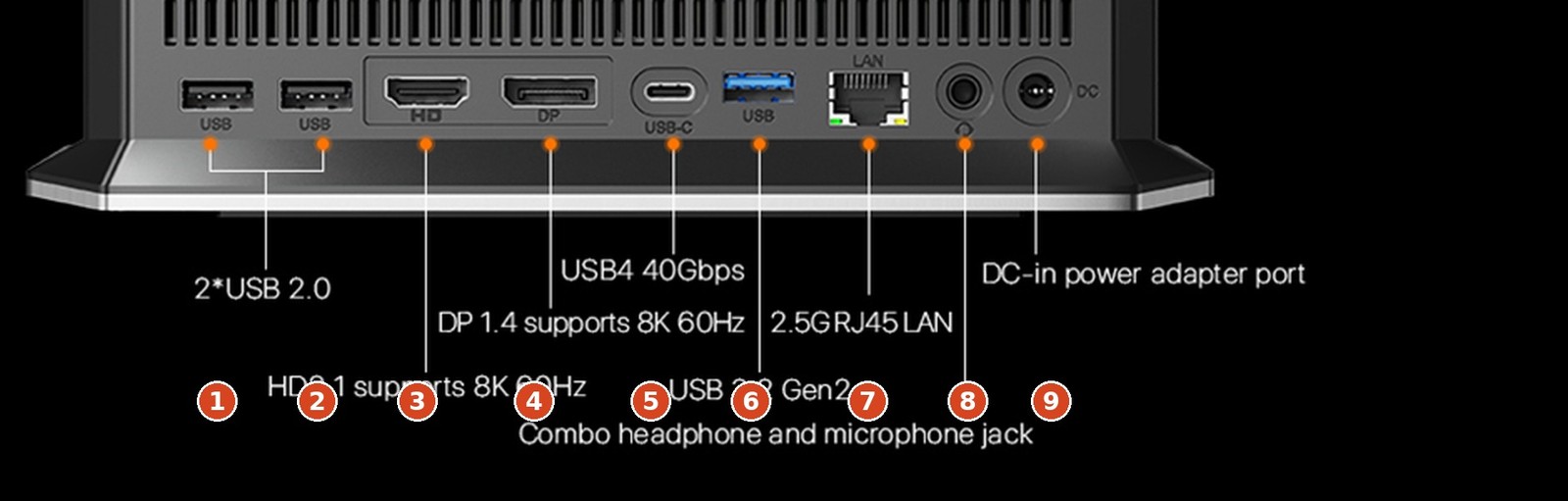

The picture below is the rear panel of the YO1. The numbers match the list underneath, from left to right.
- USB 2.0 (Type-A)
- USB 2.0 (Type-A)
- HDMI 2.1, 8K at 60 Hz
- DisplayPort 1.4, 8K at 60 Hz
- USB4 40 Gbps (Type-C)
- USB 3.2 Gen2 (Type-A)
- 2.5 Gigabit Ethernet (RJ45)
- 3.5 mm headphone/microphone combo jack
- DC power input

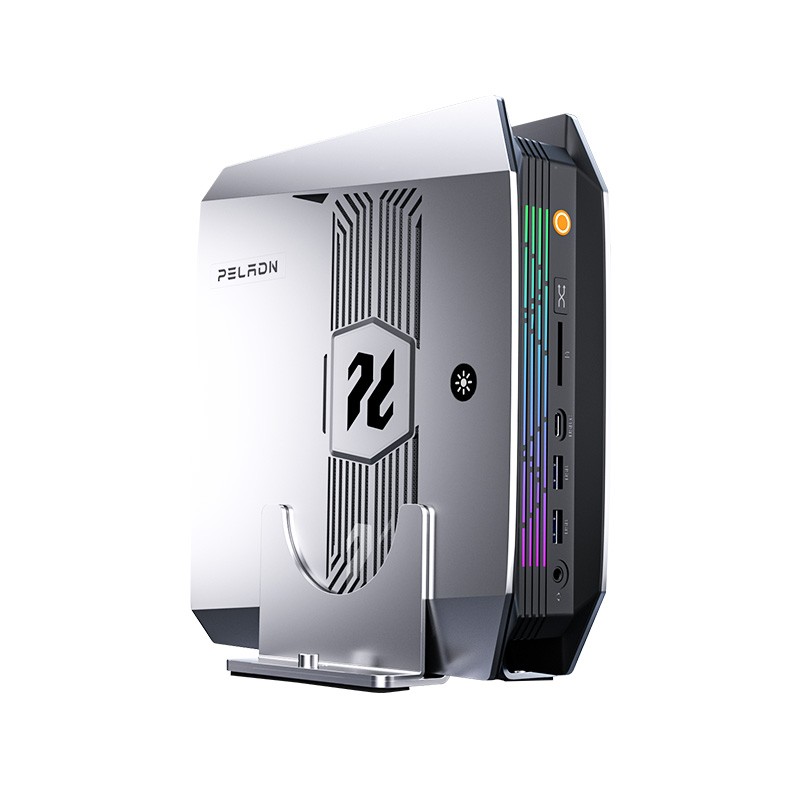

The front panel carries the power button, the performance-mode button, two USB 3.2 Gen2 Type-A ports, one USB4 Type-C port, the SD card reader and the second audio jack.
